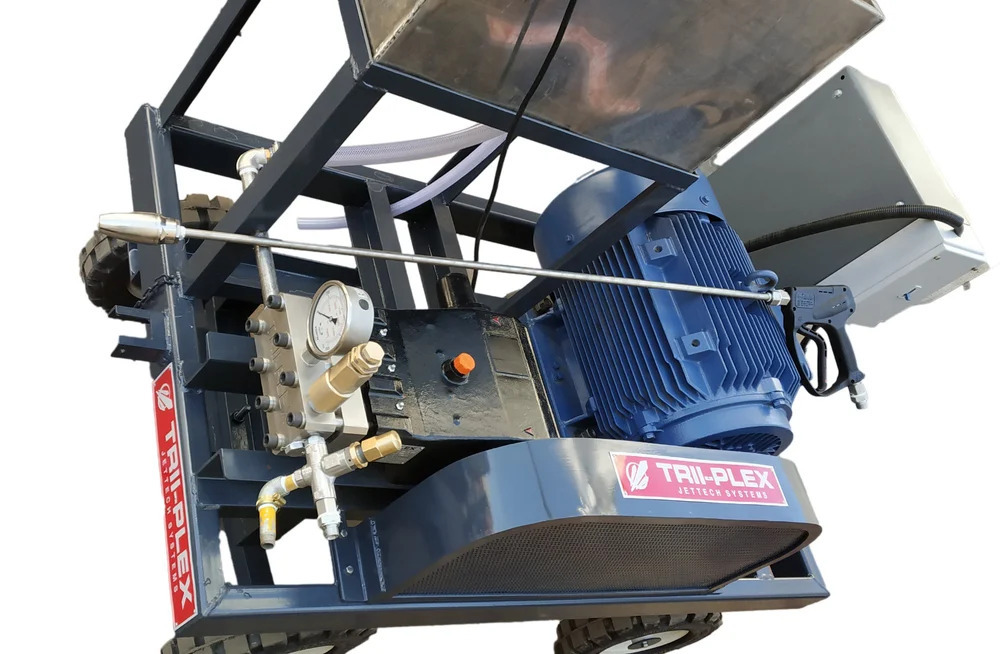

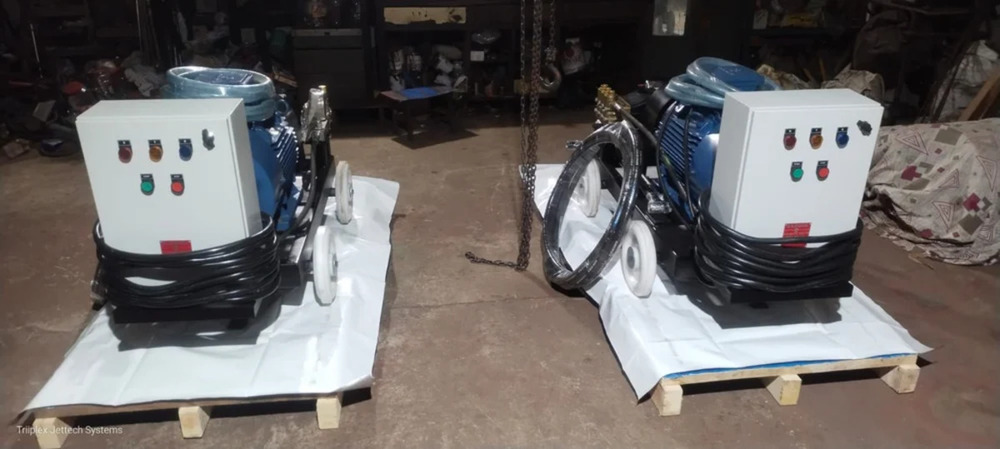

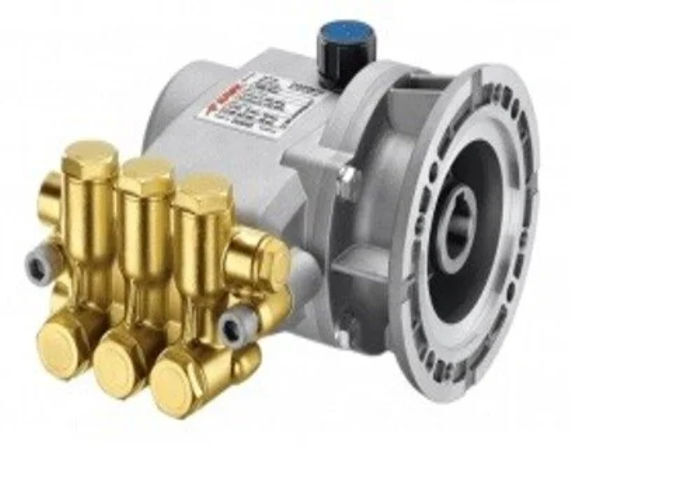

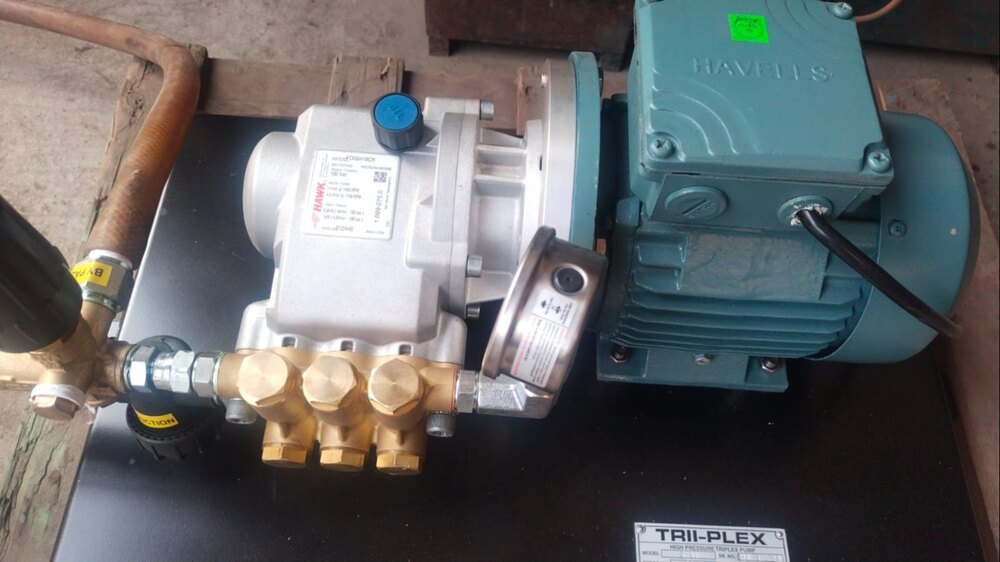

High Pressure Misting Pump

Name: High Pressure Misting Pump
Brand: TRII PLEX JETTECH SYSTEMS
Price: 60000 INR
Availability: InStock

Price 60000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Pressure Misting Pump Specification

Features
Corrosion Resistant, Durable, Energy Efficient

Discharge Pressure
50-70 bar

Flow Rate
6-21 LPM

Theory
Reciprocating Pump

Voltage
440 Volt (v)

Noise Level
Low

Control System
Automatic

Head Size
350 bar

Frequency
50/60 Hz

Inlet/Outlet
3/8 BSP

Speed
1450 RPM

Mounting Type
Vertical/Horizontal

Working Temperature
5C to 60C

Caliber
Standard

Max Suction
2.5 m

Material
BRASS HEAD

Structure
Plunger Pump

Power
Electric Horsepower (HP)

Standard
ISO Certified

Fuel Type
Electric

Pressure
High Pressure Bar

Usage
Misting/Cooling

Application
Industrial/Commercial Misting

Suction Type
Positive Displacement

Seals Type
High Pressure Seals

Priming
Self-Priming

Pump Type
High Pressure Misting Pump

Capacity
Up to 21 LPM

Color
Silver/Blue

Weight
22 kg

Dimensions
Approx. 350mm x 300mm x 250mm

Protection Class
IP55

Service Life
4000+ hours

High Pressure Misting Pump Trade Information

Minimum Order Quantity
1 Piece

FOB Port
all india and export

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Free samples are available

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About High Pressure Misting Pump

Overview

A High Pressure Misting Pump generates fine water mist by forcing water at high pressure through specialized nozzles. It's widely used in outdoor cooling (restaurants, patios, amusement parks), greenhouse humidification, and industrial dust control

Exceptional Performance for Misting Applications

Designed for versatile industrial and commercial environments, this misting pump ensures dependable operation within a 5C to 60C temperature range. Thanks to its positive displacement and self-priming technology, the pump delivers consistent misting performance, reducing temperature and controlling humidity effortlessly.

Robust Construction and Longevity

The unit utilizes high-pressure seals, a brass pump head, and ISO-certified manufacturing for durability in harsh conditions. With a service life exceeding 4000 hours and an IP55 protection class, it offers substantial resistance against dust and water infiltration, ensuring sustained, reliable operation.

Advanced, User-Friendly Features

Automatic controls simplify monitoring and adjustments, while dual mounting options (vertical or horizontal) provide flexibility for various installation needs. Operating at 1450 RPM with low noise emission and minimal maintenance requirements, this pump addresses efficiency and ease of use for distributors, exporters, and wholesalers.

FAQ's of High Pressure Misting Pump:

Q: How is the High Pressure Misting Pump installed and operated?

A: Installation is adaptable, allowing for either vertical or horizontal mounting depending on your site requirements. The automatic control system simplifies operation-once connected to a 440V power supply, the pump is ready for immediate use in misting or cooling applications.

Q: What are the primary benefits of using this pump for misting applications?

A: This pump delivers high misting efficiency, substantial energy savings, and robust resistance to corrosion. With durable high-pressure seals and a brass head, it ensures reliable cooling while minimizing maintenance and operational noise, making it ideal for continuous industrial or commercial use.

Q: When should maintenance be performed on the misting pump?

A: Routine inspections should be scheduled according to your operating environment, but generally after several hundred hours of use or if performance decline is noticed. Thanks to its rugged construction, the pump requires minimal upkeep throughout its 4000+ hour service life.

Q: Where can this high pressure misting pump be used?

A: It is suitable for a variety of sites including industrial plants, commercial spaces, outdoor venues, and agricultural facilities where cooling, humidification, or dust suppression is needed. Its ISO-certified build ensures consistent reliability across diverse applications.

Q: What safety and protection features does the pump include?

A: With an IP55 protection class, the pump is safeguarded from dust ingress and water jets. The durable brass head and high-pressure seals further enhance safety by preventing leaks and maintaining stable operation under demanding conditions.

Q: How does the pump maintain energy efficiency during operation?

A: The pump is engineered with a reciprocating plunger design and automatic controls, optimizing energy consumption while providing the required pressure and flow rate for various misting needs. It operates at a consistent speed (1450 RPM) and is designed for low power loss.
