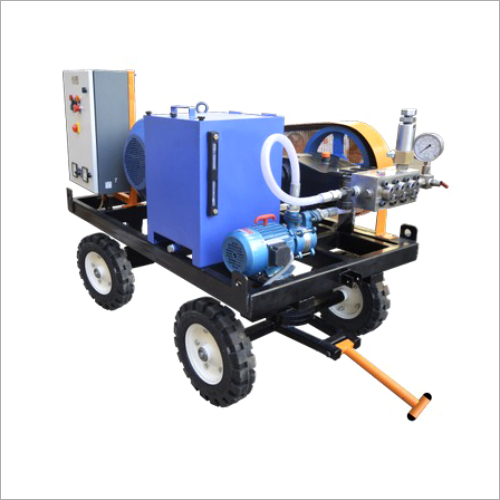

Triplex High Pressure Plunger Pumps

Triplex High Pressure Plunger Pumps
Triplex High Pressure Plunger Pumps
Send Inquiry
Product Code : SJ-20
Brand Name : TRIIPLEX
Price And Quantity
  • Minimum Order Quantity
  • 01
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 700000.00 - 1150000.00 INR
Product Specifications
  • Theory
  • Jet Pump
  • Inlet/Outlet
  • 2
  • Flow Rate
  • 35 LPM
  • Max Suction
  • 35 LPM
  • Material
  • High Strength
  • Structure
  • Piston Pump
  • Power
  • Electric
  • Standard
  • Size
  • Pressure
  • High Pressure
  • Usage
  • Paper Printer, Boat, Automobile, Food, Water
  • Application
  • Other, Sewage, Maritime
  • Suction Type
  • Positive
Product Description

Industrial Triplex High Pressure Plunger Pumps are rated operating pressure up to 1000 bar/14500 psi and Flow Rate of up to 35 l/min. With Ceramic Plunger Cooling Systems.

Trii-plex Jettech Systems are Manufacturers of Ultra High Pressure Triplex Plunger Pumps as per client requirement of Flow Rate & Pressure for many Industries wise applications like Sugar Plant (Refinery), Power Plants, Cement Plant, Tank Manufacturers, Tire & Rubber, Ocean Platform, Oil Field, Petrochemical, Automobile, Ship Industry, Steel Structure Industry, Aerospace, etc.

Applications for Ultra Water Jetting Machines are:

  • Water cleaning for some building surface
  • High Pressure Hydrostatic Test of Heat Exchangers, Boilers, Tubes, Cross country pipelines
  • High pressure water blasting
  • Industrial Tube Cleaning of Heat Exchangers, Boilers, Condensor, Evaporators, etc
  • ACC Tube Cleaning, APH Basket & Tubes Cleaning
  • Ship Hull Cleaning, Paint Removal High Pressure Pumps
  • Hydro Jetting Services
  • High pressure water cleaning vessel
  • Surface cleaning
  • Pipe /Tank cleaning, Tube Bundles Cleaning
  • Textile Industrial Work for Humidification
  • Pharmaceutical factory and concrete removal and roughening
  • Remove sand, oil, rust, colloid, paint and dirty stuff of castings
  • Remove bread crust in rotary kiln of cement plant

Technical Data:

  • Model No: SJ-20
  • Flow Rate: 35 L/Min (9.25 GPM)
  • Min. Pressure: 620 BAR (8990 PSI)
  • Max. Pressure: 1000 BAR (14500 PSI)
  • Elec. Motor: 60HP~100HP (Std. / Flameproof)

Accessories we supply with systems:

  • Triplex Plunger Bare Pump (Optional available Ceramic Plunger Cooling System)
  • Electric Motor (Standard / Flameproof)
  • Diesel Engine (Optional)
  • Platform (Base frame / Movable Trolley mounted)
  • Pressure Gauge (Glycerin Field)
  • Unloader Valve
  • Pressure Relief Valve
  • Heavy Duty Filter (Strainer)
  • Electric Control Panel (Standard / Flameproof)
  • Trigger Operated Dump Gun (Optional)
  • High Pressure Hyd. Rubber Hose 10 Mtrs (Extra as per client req.)
  • Low Pressure Suction & Bypass hose
  • Cleaning Nozzles, Tube Cleaning Nozzles, Tornado Nozzles,
  • Flexible Lances Hose for Tube Cleaning (Imported)
  • Rigid Lances 400mm, 600mm, 800mm, 1000mm

Advantages for High Pressure Triplex Plunger Pump:

  • This pump can change flow by different diameter of plunger
  • Can adjust work pressure to make high pressure
  • The renewal of plunger and packing is simple and quick
Trade Information
  • FOB Port
  • All over India, Export
  • Supply Ability
  • As per client requirement Per Month
  • Delivery Time
  • Tantative Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes with plastic wrapping, Export Packaging, As per client requirement
  • Main Domestic Market
  • West Bengal, Uttarakhand, Uttar Pradesh, Tripura, Telangana, Tamil Nadu, Sikkim, Rajasthan, Pondicherry, Punjab, Odisha, Nagaland, Manipur, Meghalaya, Mizoram, Maharashtra, Madhya Pradesh, Lakshadweep, Kerala, Karnataka, Jharkhand, Jammu and Kashmir, Himachal Pradesh, Haryana, Goa, Gujarat, Daman and Diu, Dadra and Nagar Haveli, Delhi, Chandigarh, Chhattisgarh, Bihar, Arunachal Pradesh, Assam, Andhra Pradesh, Andaman and Nicobar Islands, West India, East India, North India, Central India, South India, All India
