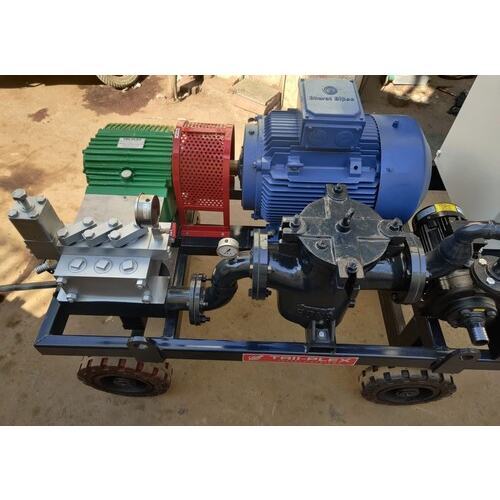

Hydro Jetting Machine

Product Description

Trii-plex Jettech Systems are Manufacturers of Industrial High Pressure Water Jet Blasting Pumps as per client requirement of Flow Rate & Pressure for many Industries wise applications like Sugar Plant (Refinery), Power Plants, Cement Plant, Tank Manufacturers, Tire & Rubber, Ocean Platform, Oil Field, Petrochemical, Automobile, Ship Industry, Steel Structure Industry, Aerospace, etc.

Applications for High Pressure Water (Hydro) Jetting Systems are:

Water cleaning for some building surface

High Pressure Hydrostatic Test of Heat Exchangers, Boilers, Tubes, Cross country pipelines

High pressure water blasting

Industrial Tube Cleaning of Heat Exchangers, Boilers, Condensor, Evaporators, etc

ACC Tube Cleaning, APH Basket & Tubes Cleaning

Ship Hull Cleaning, Paint Removal High Pressure Pumps

Hydro Jetting Services

High pressure water cleaning vessel

Surface cleaning

Pipe / Tank cleaning, Tube Bundles Cleaning

Textile Industrial Work for Humidification

Pharmaceutical factory and concrete removal and roughening

Remove sand, oil, rust, colloid, paint and dirty stuff of castings

Remove bread crust in rotary kiln of cement plant

Technical Data:

Model No: SJ-28

Flow Rate: 70 L/Min (18.49 GPM)

Min. Pressure: 310 BAR (4496 PSI)

Max. Pressure: 510 BAR (7397 PSI)

Elec. Motor: 60HP 100HP (Standard / Flameproof)

Accessories we supply with Hydro Jetting Machines:

Triplex Plunger Bare Pump (Optional Plunger Cooling System)

Electric Motor (Standard / Flameproof)

Diesel Engine (Optional)

Platform (Base frame / Movable Trolley mounted)

Pressure Gauge (Glycerin Field)

Unloader Valve

Pressure Relief Valve

Heavy Duty Filter (Strainer)

Electric Control Panel (Standard / Flameproof)

Trigger Operated Dump Gun (Optional)

High Pressure Hyd. Rubber Hose 10 Mtrs (Extra as per client req.)

Low Pressure Suction & Bypass hose

Cleaning Nozzles, Tube Cleaning Nozzles, Tornado Nozzles,

Flexible Lances Hose for Tube Cleaning (Imported)

Rigid Lances 400mm, 600mm, 800mm, 1000mm

Advantages for High Pressure Triplex Plunger Pump:

This pump can change flow by different diameter of plunger

Can adjust work pressure to make high pressure
