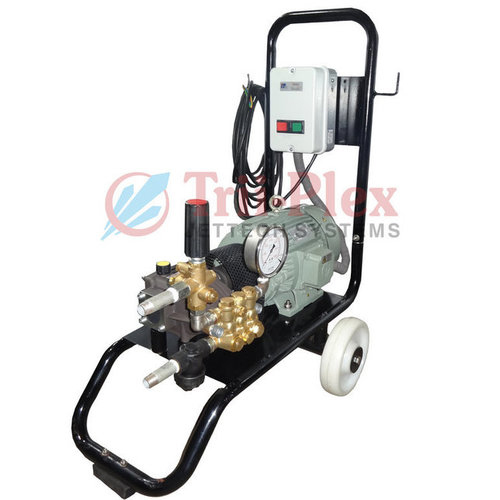

High Pressure Test Pump Unit

High Pressure Test Pump Unit
High Pressure Test Pump Unit
Product Code : NHD-14.150
Brand Name : TRIIPLEX
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Specifications
  • Theory
  • Reciprocating Pump
  • Flow Rate
  • 14
  • Structure
  • Piston Pump
  • Power
  • Electric Watt/Volt ( w/v)
  • Fuel Type
  • Diesel
  • Pressure
  • High Pressure Bar
  • Usage
  • Water
  • Application
  • Fire, Maritime, Other
Product Description

High Pressure Test Pumps are Characteristic capability to perform High Pressure Hydro Test of Tubes, Pipes, Hoses, Cylinder, Hydro test of Pressure Vessels & Boilers, Hydrostatic Test Pump of Cross Country Pipe Lines, Valves, Castings, Components, etc. for Leaks, Cracks or Defects.

Trii-plex Jettech Systems are Manufacturers; Suppliers & Exporters of High Pressure Test Pumps & Equipments 14 LPM and Pressure 150 BAR with Electric Driven & Diesel Driven.

Every Pressure Test is different and that is why the solutions of our Trii-plex Jettech Systems engineers are as diverse as your applications. For with our extensive expertise we can adapt every Test Pump to your specific needs. Pressure and Flow Rates can be individually set and controlled and the pressure testing progression can be clearly logged. With Hydrostatic Testing, component or vessel is tested with a liquid (typically water), and pressurizing until test pressure is reached. Once the pressure is reached, the test is complete, and for other tests hydrostatic pressure must be held for a specific amount of time. Depending on the application, the hydrostatic testing can be used to help identify leaks, structural integrity, manufacturing flaws, wear, corrosion and burst pressure.

Technical Specification:

Model No: NHD-14.150

Flow Rate: 14 LPM (3.70 GPM)

Min. Pressure: 50 BAR (725 PSI)

Max. Pressure: 150 BAR (2175 PSI)

Motor(HP): 2HP~5HP



Technical Features about Plunger Pump:

Pump Head: Forged Brass.

Plungers: Solid Ceramic Plungers.

Pump Main Body: Fully anodized Crankcase.

Connecting Rod: High wear resistant Forged Alloy Steel.

Crank Shaft: High wear resistant Forged Alloy Steel.

Plunger Seal: Improved low and high pressure seals.

Valve Assembly: High wear resistant Stainless Steel.

Oil: 15W40



Features:

  • Robust Construction
  • Low and Easy Maintenance
  • Simple and Comfortable Design
  • Easy Installation
  • Volumetric Efficiency 95% (maximum)
  • Extra Heavy duty Power Frame ensures uninterrupted smooth long life
  • Easy to maintain, simple to repair & nominal maintenance needed in case of breakdown

Applications:

  • Cross Country Pipelines
  • Pressure Vessels
  • C.I. Mains
  • Casting Parts
  • Boilers
  • Gas Cylinders
  • Pipes & Tube Parts
  • Fire Extinguisher

Special Features:

Electrically Motorized Driven System, Totally Enclosed Drive Mechanism, Heavy Duty Precision Gear box, Self oiling System, Quick Acting Relief valve, Totally Dependable, Reliable and Efficient Performance.

Standard Accessories:

Pressure Release Valve made from Brass Metal.

Discharge Pressure Hose with Attachment of ½” BSP Length 10 Mtrs.

Stainless Steel Glycerin filled Pressure Gauge with 4” inch Dial.

Suction & Discharge valve (NRV) Made from Stainless steel Material.

Pressure Set Valve Made from Stainless Steel.

Optional Accessories:

Automation Control Panel

Water Tank with water capacity of 50 liters

Trolley Mounted
Trade Information
  • FOB Port
  • Mumbai, Mundra, Kandla, Pipavav Port
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T), Others, Cash in Advance (CID), Letter of Credit (L/C)
  • Supply Ability
  • 50 Per Month
  • Delivery Time
  • 14 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes with plastic wrapping, Export packaging, As per customer requirement
  • Main Export Market(s)
  • Asia, Middle East, Africa, North America, Eastern Europe, Australia, Western Europe, South America, Central America
  • Main Domestic Market
  • All India
